The SolaMaster Series is a versatile line of tubular daylighting devices that captures natural light at the rooftop and transfers it into building interiors where daylighting has rarely been possible. These systems feature patented optical technologies that deliver highly predictable light levels, allowing them to be used in commercial daylighting design applications similar to traditional lighting equipment. They are ideal for spaces with ceiling heights ranging from 8 ft. to 20 ft.

Architectural and environmental integration

Commercial daylighting has many advantages, but it also poses some challenges. Shifting light patterns, solar heat gain, and glare are all concerns when it comes to using the sun’s rays for natural lighting. As a company, we set out to overcome these challenges by developing innovative commercial daylighting systems that not only meet architectural and environmental objectives but also provide predictable light output, design flexibility, and peace of mind. Read below to learn more.

Optical controllability

The SolaMaster Series selectively redirects, reflects and delivers the visible spectrum of daylight to interior spaces. At the same time, it filters out infrared wavelengths to reduce daytime cooling loads, minimizing costs associated with air conditioning units. It also prevents harmful ultraviolet light from entering the building, which can damage interiors and fade furniture and fabrics. Whether your application requires controlled, consistent light output or maximum light output throughout the day, The SolaMaster Series offers options to meet your specific commercial lighting needs.

Superior transmission

Along with delivering the highest quality daylight possible, Solatube Daylighting Systems produce minimal color / spectral shift of light. Known as high Color Temperature Maintenance (CTM), this characteristic ensures consistent color temperature and stable color rendition across the visible light spectrum over the course of the year. Our systems also boast unrivaled Light Transfer Efficiency (LTE). This means they deliver maximum light throughput for greater output and enhanced multi-story daylight delivery. In short, Solatube Daylighting Systems are the pinnacle of light output, color consistency and quality of light delivery.

Performance predictability

When using sunlight for commercial lighting design applications, you want your daylighting solution to perform as planned. Solatube tubular daylighting devices feature patented optical technologies that deliver extremely consistent daylighting, hour by hour and season by season. A Solatube Design Specialist can even provide you with IES Photometry and tools to assist you in your design process. Whatever your building type or need, we have the tools that let you customize lighting to achieve your aesthetic goals.

Engineered reliability

We engineer our tubular daylighting devices for reliability with leakproof flashings, self-cleaning domes and UV / IR screening. The result is a commercial daylighting solution that withstands inclement weather, requires little to no maintenance, and delivers bright, beautiful daylight to occupants for years to come, giving you ultimate peace of mind.

Occupant productivity

When sunlight is allowed to enter a building, the people occupying it—whether they are working, studying, shopping or living—tend to be happier, healthier and more productive. We believe everyone deserves to experience the benefits that bright, beautiful natural lighting has to offer. The sustainable lighting design of our commercial daylighting products enhances occupants’ functionality so they can work and live at the highest levels.

Extraordinary adaptability

A building’s use can change over its lifetime. That’s why the SolaMaster Series is designed for adaptability. When a building is reconfigured or modified, our systems can change along with it. Fixtures can be swapped out and new effect lenses or lighting controls can be added or removed to customize a space. Or, if a remodel demands it, the tubing can be easily rerouted to a new location. With such extraordinary adaptability, Solatube Daylighting Systems can be adjusted to conform to your building needs now as well as those in the future.

Affordable sustainability

Solatube products are engineered to reduce environmental impact while providing energy-efficient lighting that nurtures building occupants. By utilizing sustainable natural daylight, our systems eliminate the need for electric lights during the day as well as the utility needed to generate that power. This minimizes a building’s carbon footprint by reducing environmental CO2 emissions.

From a financial perspective, Solatube Daylighting Systems make good sense because they are cost-effective and reduce maintenance costs. In fact, they often have lower installation costs than other fenestration products. The end result is high-performance, eco-friendly commercial lighting at a price that fits your budget.

Effortless attainability

Getting a Solatube Daylighting System is effortless because we have distributors all around the globe. You can find a Solatube dealer in your area using the “dealer locator” tool at the top of this page.

Product Selection Guide

Models
Roof Flashings
Diffusers
Accessories

330 DS Open Ceiling

330 DS Closed Ceiling

750 DS Open Ceiling

750 DS Closed Ceiling

SolaMaster Series - Open Ceiling

Climate can affect the efficient capture of daylight. That's why the SolaMaster Series comes in multiple configurations, each engineered for a specific climatic condition. Models can be used in open ceiling, T-bar suspended grid ceilings, or hard ceilings.

330 DS Open Ceiling

The SolaMaster 330 DS is designed to maximize light output at any time of day. It effectively captures low-angle rays in the morning and late afternoon, and collects high-angle rays at midday for powerful performance. It is ideal for lighting expansive spaces with open ceilings where variances in light levels don’t create an issue for occupants.

Tube size ≈ 21 in. (530 mm)
Potential tube length ≈ 50 ft. (15 m)

Applications

Lobbies / Atriums
Recreation areas
Gymnasiums

SolaMaster Series - Closed Ceiling

330 DS Closed Ceiling

The SolaMaster 330 DS is designed to maximize light output at any time of day. It effectively captures low-angle rays in the morning and late afternoon, and collects high-angle rays at midday for powerful performance. It is ideal for lighting expansive spaces with dropped ceilings where variances in light levels don’t create an issue for occupants.

Tube size ≈ 21 in. (530 mm)
Potential tube length ≈ 50 ft. (15 m)

Applications

Offices / Corridors
Restaurants
Retail spaces

SolaMaster Series - Open Ceiling

750 DS Open Ceiling

The SolaMaster 750 DS is designed to deliver consistent light output throughout the day. It effectively captures low-angle rays in the morning and late afternoon, but rejects high-angle rays at midday to prevent glare, overlighting and overheating. Perfect for large spaces with open ceilings where a consistent level of light is required during typical work hours.

Tube size ≈ 21 in. (530 mm)
Potential tube length ≈ 50 ft. (15 m)

Applications

Warehouses
Manufacturing areas
Retail spaces

SolaMaster Series - Closed Ceiling

750 DS Closed Ceiling

The SolaMaster 750 DS is designed to deliver consistent light output throughout the day. It effectively captures low-angle rays in the morning and late afternoon, but rejects high-angle rays at midday to prevent glare, overlighting and overheating. Perfect for large spaces with dropped ceilings where a consistent level of light is required during typical work hours.

Tube size ≈ 21 in. (530 mm)
Potential tube length ≈ 50 ft. (15 m)

Applications

Classrooms
Conference rooms
Retail spaces

Self Mounted

Metal Roof

Curb Mounted Cap

Flashings

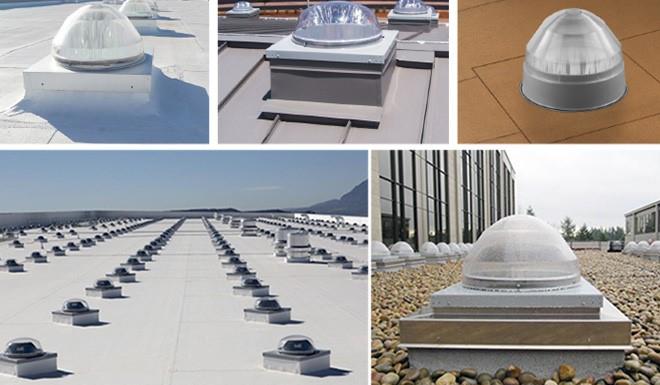

Regardless of the particular roof type or deck material you use, Solatube products have a flashing designed to meet your needs. The seamless, one-piece steel construction eliminates the possibility of leaks by ensuring there are no weak points that may separate and allow water to enter.

Self Mounted Flashing

Available in 4 in. (100 mm), 8 in. (200 mm) and 11 in. (280 mm) high flashing options; used on pitched or flat roof systems
The 4 in. (100 mm) high flashing is recommended for most residential applications because of its low profile
The 8 in. (200 mm) and 11 in. (280 mm) high flashings are recommended for use on flat commercial roof applications to meet commercial curb height requirements

Self Mounted Flashing

Flashings

Metal Roof Flashing

2-piece streamlined design eliminates the need for expensive curbs and bulky crickets
Innovative DryLock Technique provides a triple-seal that virtually locks the flashing to the roof deck
Easily adapted to fit nearly any Universal Standing Seam Rib (SSR) roof profile

Metal Roof Flashing

Flashings

Curb Mounted Cap

Designed for use on all roof curbs for all roof types
For use with any pre-built wood or manufactured metal curb

Curb Mounted Cap

OptiView Diffuser

OptiView^® Diffuser

Prismatic Diffuser

OptiView Diffuser with White Trim

OptiView^® Diffuser with White Trim

Prismatic Diffuser with White Trim

SolaMaster Diffusers

SolaMaster Series Diffusers give you optimal control over enormous amounts of daylight harvested by our optical domes and SpectraLight Infinity Tubing. Whether your goal is to blend, beautify or boast, these diffusers offer a way to enhance the look of any interior.

OptiView Diffuser

OptiView^® Diffuser

The innovative design of our square OptiView Diffuser features individual Fresnel lenses that offer a unique view of the sky above while providing unrivaled light diffusion and vertical surface illumination. Available for use on closed ceiling models.

SolaMaster Diffusers

OptiView Diffuser

Prismatic Diffuser

Perfect for replicating the look and style of traditional troffers, the rectangular Prismatic Diffuser blends into virtually any design for a bright diffusion of natural light. Available for use on closed ceiling models.

SolaMaster Diffusers

OptiView Diffuser

OptiView^® Diffuser with White Trim

The innovative design of our circular OptiView Diffuser features individual Fresnel lenses that offer a unique view of the sky above while providing unrivaled light diffusion and vertical surface illumination. The diffuser snaps on to the bottom tube for easy installation. Available for use on open ceiling models.

SolaMaster Diffusers

OptiView Diffuser

Prismatic Diffuser with White Trim

Perfect for replicating the look and style of traditional troffers, the circular Prismatic Diffuser blends into virtually any design for a bright diffusion of natural light. The diffuser snaps on to the bottom tube for easy installation. Available for use on open ceiling models.

Daylight Dimmer

Spectralight Infinity Extension Tubes

Spectralight Infinity 0-90 Degree Tubing

Turret Extensions

Dimmer Switch Kit

Transition Box

Flashing Insulator

Trim Ring

Secondary Diffuser

Security Bar

Dome Security Kit

Wire Suspension Kit

Dome Edge Protection Band

Curb Cap Insulation

Closed

Open

Daylight Dimmer

At times, it may be necessary to reduce the amount of bright daylight in a building—during a presentation, for instance. The optional Daylight Dimmer uses a patented butterfly baffle and a convenient wall-mounted switch to allow for simple and easy adjustments to room daylight illumination levels.

Double Pole Double Throw (DPDT) Switch

Daylight Dimmer Switch Kit (sold separately) includes DPDT switch, wall plate and 30 ft./9 m of cable. Multiple Daylight Dimmers can be controlled by one switch.

330 DS
750 DS

Spectralight^® Infinity Extension Tubes

Extension tubes can be added in increments of 24 in. (610 mm) or 48 in. (1220 mm) for long runs without sacrificing performance. Spectralight Infinity has the highest reflectivity in the world for the brightest, purest light. Create tube runs of up to 50 ft. (15 m).

330 DS
750 DS

Spectralight^® Infinity 0-90 Degree Extension Tube

Provides superior performance that flexible tubes can’t match. An innovative design with three built-in 30 degree angle adapters that give you the flexibility to install around obstacles. Available in 23 in. (580 mm) length.

Turret Extensions

Use to raise the height of the Solatube dome on a roof to avoid snow, water, or shading from roof obstructions. Order additional Spectralight® Infinity tubing to accommodate turret height. Available in 12 in. (300 mm), 24 in. (610 mm), 36 in. (900 mm) and 48 in. (1220 mm) sizes.

330 DS
750 DS

Daylight Dimmer Switch Kit

The Daylight Dimmer Switch Kit includes a Double-Pole Double-Throw (DPDT) switch, wall plate and 15 ft. (4.5 m) of cable. One switch can control multiple Daylight Dimmers simultaneously.

Daylight Dimmer

When paired with the Daylight Dimmer Switch Kit, the optional Daylight Dimmer (sold separately) allows for simple and easy adjustments to room daylight levels.

330 DS
750 DS

Transition Box

The SolaMaster^® Series features a patented transition box that seamlessly converts the round tubing to a square diffuser. The transition box easily fits into standard commercial ceiling grids.

330 DS
750 DS

Flashing Insulator

This insulating material helps to reduce condensation in cold climates when the flashing is exposed to a humid interior space. The insulator is affixed to the flashing base and the top tube slips through the opening, which provides a seal between the interior and metal flashing.

330 DS
750 DS

Trim Ring

For use with the Solatube 330 DS and 750 DS Open Ceiling Configurations, the trim ring provides a finished appearance to the installation.

330 DS
750 DS

Secondary Diffuser

To eliminate unwanted glare or to reduce light output, an optional secondary diffuser can be inserted into the Solatube® Daylighting System dome for natural lighting preference.

330 DS
750 DS

Security Bar

This stainless steel bar inserts into the flashing turret across the diameter of the opening. The bar is fastened using rivets and prohibits entry through the dome.

330 DS
750 DS

Dome Security Kit

The kit consists of three rivets with protective nylon spacers, which replace dome screws. The dome security kit reduces the possibility of the dome being removed.

330 DS
750 DS

Wire Suspension Kit

Use the Wire Suspension Kit when additional bracing to the structure is required.

330 DS
750 DS

Dome Edge Protection Band

Made of galvanized steel, this optional component isesigned for use on Class A, B, or C roofs to maintain fire rating.

330 DS
750 DS

Curb Cap Insulation Kit

This R6 rigid, 1 in. thermal insulation is sealed and taped in the curb cap flashing base, which provides a thermal seal between the metal flashing and building envelope.

330 DS
750 DS
